Edic-mini Dime A124

Specification

Height 51.5 mm
Width 12.5 mm
Thickness 5 mm
Weight 3.5 g
Case Plastic
Record time (memory capacity in hours) 75h
Battery life in record mode up to 40 h
Power supply Rechargeable battery
Modifications In stock in Qty Buy
USA Russia
Edic-mini Dime A124 - Ready for
shipment
+
-

Select modifications

Еdic-mini Dime A124 has increased memory compared to Weeny series, this recorder has 4 times more memory! No cables, all you need to work is the recorder itself! A124 has extremely light weight, only 3.5 g!


A124 has internal memory, simple and intuitive operation via 1 button. Dime recorders are characterized by the lowest consumption, so we could achieve even smaller dimensions with increased autonomy.


Dime A124 has a new digital microphone and 24-bit codec that provide excellent recording quality and acoustic sensitivity up to 15m.


Simple operation allows you to turn on quickly the recording in a critical situation.


The system of built-in markers allows you to check the absence of editing records, confirm the time and date of recording, type and a serial number of the recorder on which the recording was made.


Now it doesn’t matter what type of operating system you have! Dime A124 can be connected to a computer/tablet/smartphone and other devices that support the external media connection, Windows, MAC, etc. !  Weeny recorders can also connect to your phone, so you can easily playback, delete records and configure the settings on your phone!


Main technical characteristics


Power supply

rechargeable battery 20mA

Dimensions

51.5x12.5х5mm

Weight

3.5 g

Autonomy

20 hours*

Microphone sensitivity

15 m

Charging frequency

once in six months

Signal-to-noise ratio

64dB

Dynamic range

90dB

Sampling rate

8, 16, 22 kHz

Frequency band

from 100 to 10 000Hz

Exchange rate

300 KB/s

Bit depth

Up to 24 bit

Information carrier

internal non-volatile memory

*recording duration is specified for record mode 8kHz/16 bit, the autonomy is lower with higher sampling rate or bit depth. Current in standby mode 1 μA. Current in record mode 8kHz / 16bit 1mA.



Distinctive Features


  •  Voice Activation System (VAS)

  • Timers to start recording at the preset time

  • Linear and circular recording

  • Built-in clock, calendar, attachment of records to time and date

  •  Password protection of the access to records

  • No way to change records' data of the internal memory of the Recorder

  • Built-in markers to determine records' authenticity

  • Control and indication: on/off buttons and LED

  • Audio data record in wav format

  • Direct connection to the PC via external drive (flash drive)

  • Low current consumption

  • Records' digital signature

  • Status indication with one LED

  • Operates under wide temperature range, under the conditions of shaking or dust. The permissible temperature of operation and storage from 0 to + 50C

  • Operating lifetime 3 years


When using EM Weeny voice recorders on Linux operating system, there is a damage of configuration file. This problem will be fixed in the following versions. We recommend to save a config file and re-upload it or use other operating systems.
Height 51.5 mm
Width 12.5 mm
Thickness 5 mm
Weight 3.5 g
Case Plastic
Record time
(memory capacity in hours)
75h
Battery life in record mode up to 40 h
Power supply Rechargeable battery
Built-in microphone sensetivity up to 15 m
Interface USB 2.0
Audiocodec 8 bit, 16 bit, 24 bit
Recording format WAV
Compression method uLaw
Frequency band 0,1-10 kHz
Dynamic range 70 dB
Sample rate 8, 16, 22
Controls button
Indication of operation LED
Voice Activating System YES
Timer recording YES
Battery charging time 2,5 hours

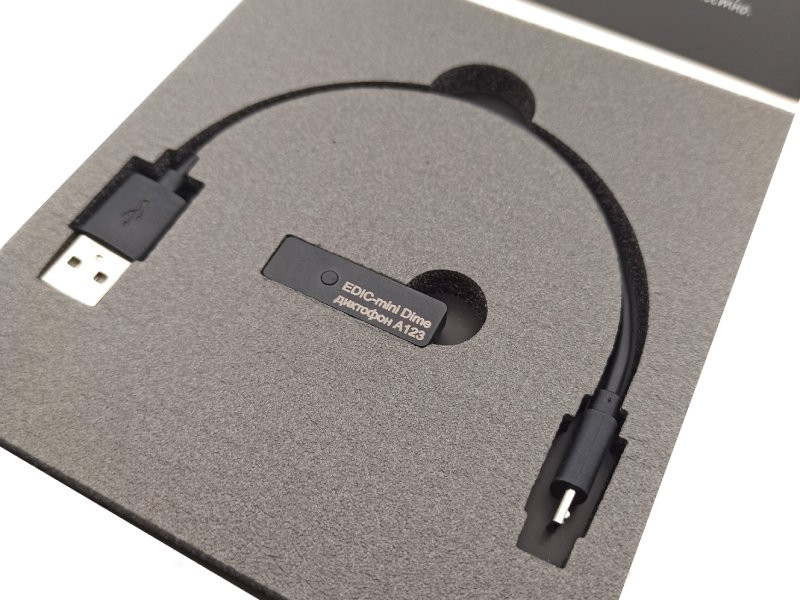

Delivery set:

1. Recorder

2. Operation manual

3. Package box

Please note: software upgrade can cause recorder’s breakdown. This is not a warranty case. All the new recorders have the latest software version and there is no necessity to upgrade software after buying the recorder. Don’t take the risk. In case there are problems with audio recorder operation please apply to our technical support specialist: support@ts-market.com

Software Firmware Manual to
software
Series manual Supplement to the model
dict EM Dime short manual EM Dime full manual A124 brochure Verifying the record's authenticity
